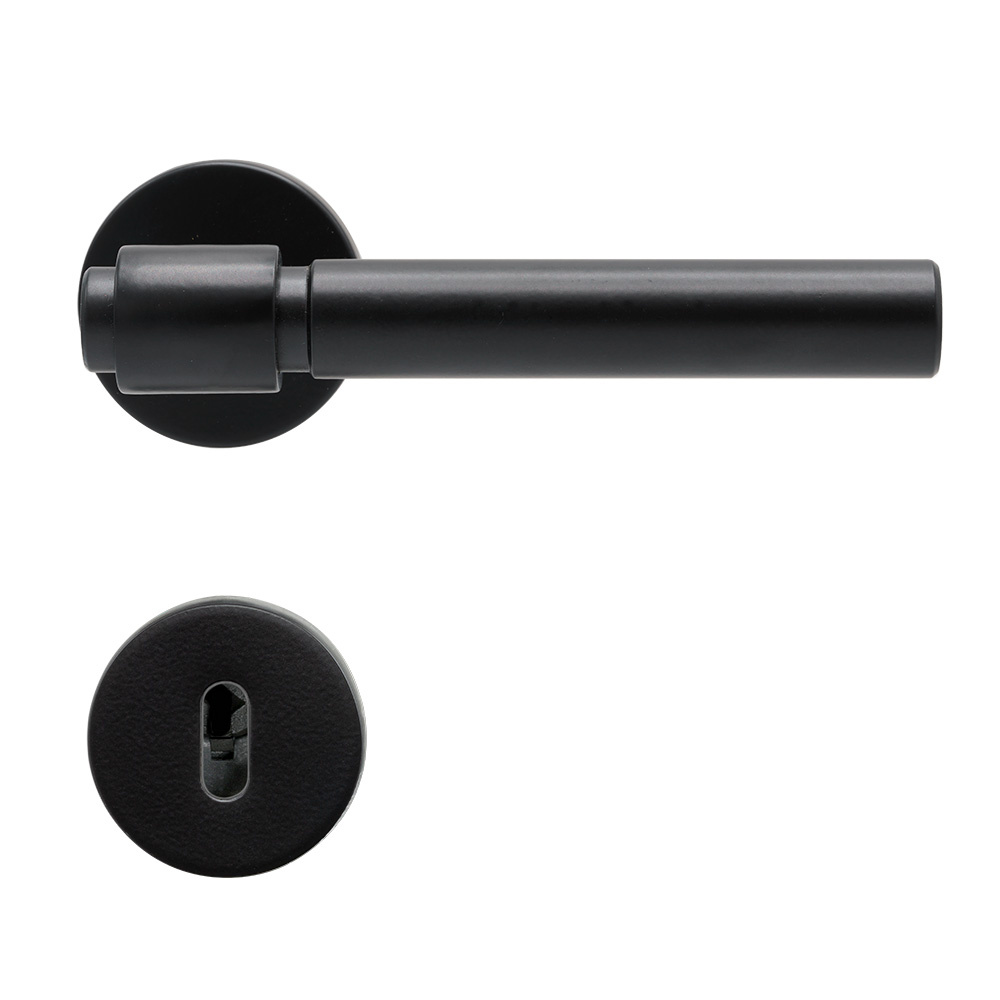

Door Handle Helix 200 Plain - Black
Campaign:
Exclusive Black Week deal!
Note: Maximum of one product per purchase. Offer valid while stocks last. First come, first served!
Campaign starts:
Campaign stops:
95.20 - €105.44
Season
sale! 20% off everythingSEASON SALE!
20% off everything*
*Does not apply to news
Free delivery over €49
60days open buy
Buy together with
20
Available in several designs
20
Available in several designs
20
20
POPULAR
Available in several designs
Description

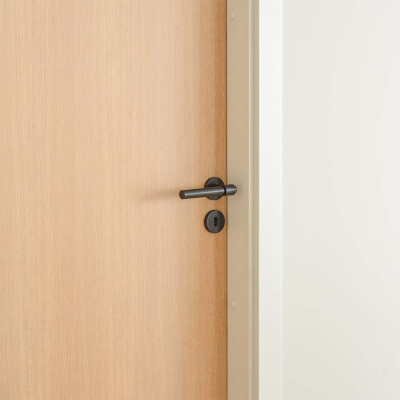

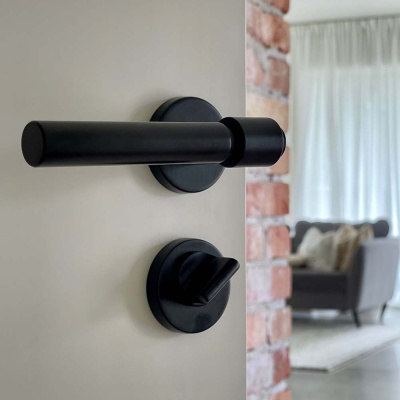

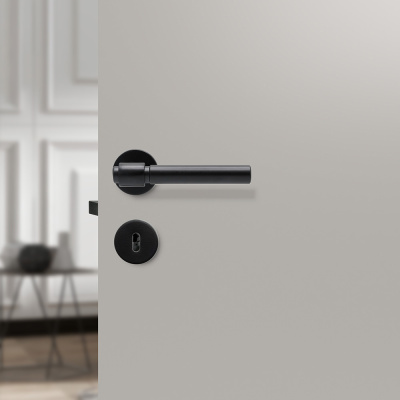

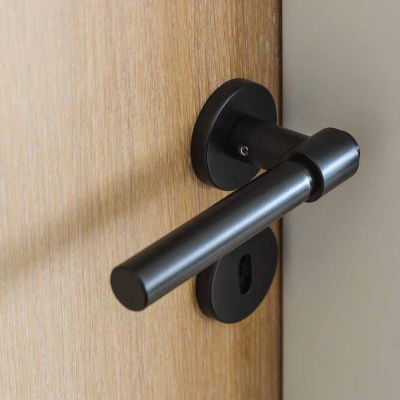

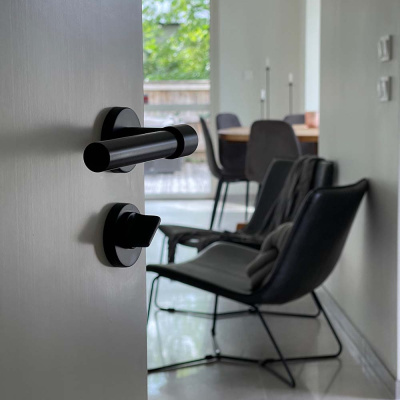

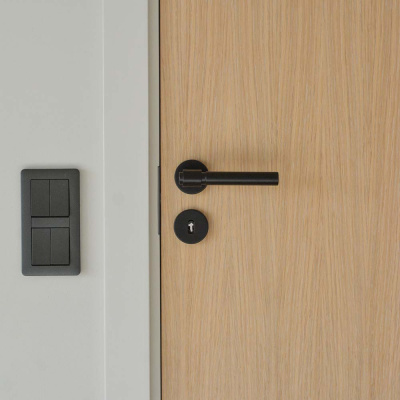

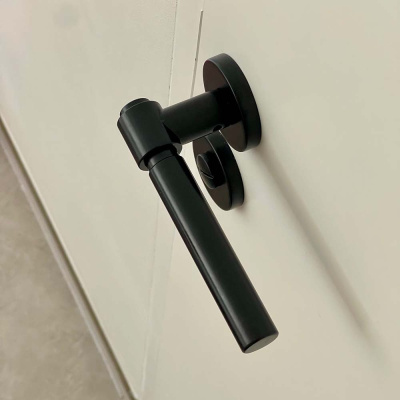

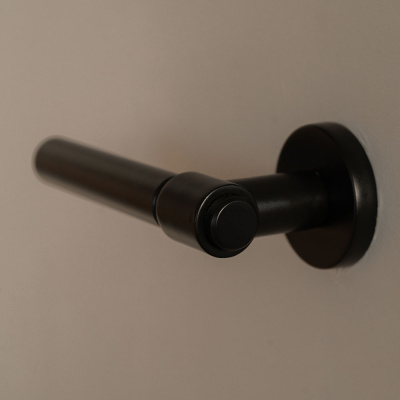

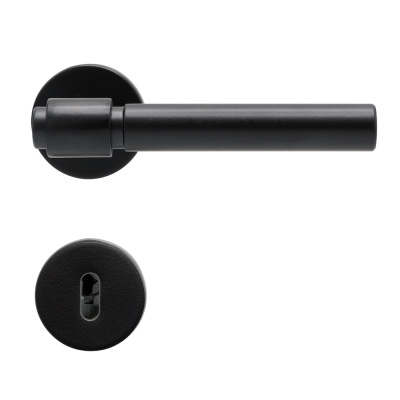

Door handle Helix 200 Plain in black design is a modern door handle with character, with its smooth grip surface and rounded shapes creating a raw feeling of elegant industrialism. The door handle is equipped with a rebound spring which causes the handle to return to its basic position after being pressed down. The door handle fits well on both light and dark doors as well as on doors throughout the home.
The door handle fits all interior doors that have a depth of 35-48mm. Supplied complete with mounting kit and associated key plate. Feel free to match the handle with toilet lock R in the same black color.
The door handle and keyhole are suitable for doors that are 35–48 mm deep. The door handle is available in both Scandinavian (fits lock case 2014) and European standards. Standard key plate, conversion kit, and complete assembly kit are included.
- All our door handles are delivered in pairs, complete for one door.
- Delivered with an 8x8mm square spindle.
The door handle is available in both Scandinavian and European standards. Standard key plate, conversion kit and complete assembly kit are included.
Scandinavian standard: Sweden, Denmark, Norway, Finland.
European standard: other countries in Europe.
This door handle is included in BO Selection.
A unique selection of interior details that can only be purchased at Beslag Online.
The door handle fits all interior doors that have a depth of 35-48mm. Supplied complete with mounting kit and associated key plate. Feel free to match the handle with toilet lock R in the same black color.
The door handle and keyhole are suitable for doors that are 35–48 mm deep. The door handle is available in both Scandinavian (fits lock case 2014) and European standards. Standard key plate, conversion kit, and complete assembly kit are included.
- All our door handles are delivered in pairs, complete for one door.
- Delivered with an 8x8mm square spindle.
The door handle is available in both Scandinavian and European standards. Standard key plate, conversion kit and complete assembly kit are included.
Scandinavian standard: Sweden, Denmark, Norway, Finland.
European standard: other countries in Europe.
This door handle is included in BO Selection.
A unique selection of interior details that can only be purchased at Beslag Online.

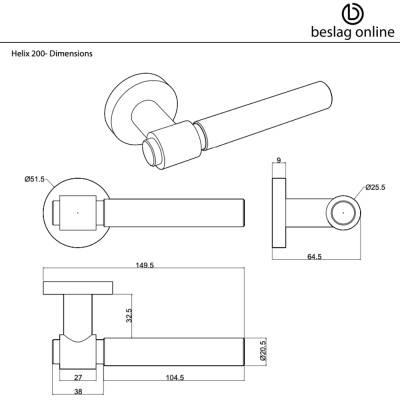

Dimensions & assembly
| Article nr: | dht-plain-svart |
| Diameter Ø: | 52 mm |
| Length: | 150 mm |
| Width: | 52 mm |
| Material: | Aluminum |
| Model: | Door Handle |
| Style: | Modern |
| Screws included: | Complete with mounting kit |
| Other information: | Door leaf thickness: 35-48mm |
| Brand: | Beslag Design |
Installation of door handles
Install the door handle using the included mounting kit.
1. Center the square bar in the lock.
2. Place the mounting washers on the square bar, making sure that the flat parts of the mounting washers are positioned down towards the floor. Then screw them in with the included screw and sleeve.
3. Take out the square rod and use it as a tool to pry out the guide washers that sit in the center of the mounting washers.
4. Place the square bar in the lock, center it and check that the milled groove in the square bar is horizontal. Then press the handle firmly so that it clicks into the tab on the top of the mounting washers.
5. Screw in the stop screws using an insect wrench and finish by tightening them. A total of four.
6. Now your door handles are mounted and ready to use.
Installation of key plate
Install the key plate using the included mounting kit.
1. Place the mounting washers on the square bar, making sure that the flat parts of the mounting washers are positioned down against the floor. Then screw them in with the included screw and sleeve.
2. Then press the key plate firmly so that it clicks into the tab on the top of the mounting washers.
3. Screw in the stop screws using an insect wrench and finish by tightening them. One screw on each side of the door.
More info & care advice
Brand - Beslag Design
Beslag Online is part of Beslag Design, which has more than 50 years of experience in the areas of fittings and interior products. Beslag Design started its journey in 1972 and today has Sweden's widest range of handles and knobs for both kitchens, bathrooms, wardrobes and furniture. With over 1,000 different models to choose from, there really is something for every style. Beslag Design are known for their high quality and breadth of range that captures the latest trends.
"Details that make the whole"
Care advice
Wipe with a clean slightly damp cloth. Avoid detergents as they may contain chemicals that affect the surface negatively. Can also be cleaned with a microfiber cloth.
